The fuel injection system is a vital component responsible for spraying the right amount of fuel into your cylinder walls, helping to complete the combustion process.
When your fuel injectors go bad or start leaking, it affects the engine’s performance and develops several leaking fuel injector symptoms.
Symptoms like reduced gas mileage, white smoke, misfiring, poor emission, erratic engine idling, and in a bad scenario, engine knocking. However, an external fuel injector leak will cause a fire outbreak if not noticed on time. Who would want his car to get burnt?
Read on to learn how to check for leaking fuel injectors to ensure your engine runs optimally and prevent fire outbreaks from external injector leaks and vacuum leaks.
What’s a Fuel Injector?
A fuel injector is a device that is used to spray fuel into the cylinders of an internal combustion engine.
The main purpose of a fuel injector is to deliver fuel into the engine in a controlled manner so that the engine can run at its optimum performance. Fuel injectors are also used in some outboard motors and other small engines.
Fuel injectors are typically located at the top of the cylinder head, near the intake manifold. They are usually pointed downward so that the fuel they spray will go directly into the intake port of the cylinder.
In some engines, the injectors are located on the side of the cylinder head, and they spray fuel directly into the combustion chamber.
Each injector has a small electrical connector that is used to deliver the electrical signal that tells the injector when to spray fuel.
This signal is usually controlled by the engine’s computer, which determines the amount of fuel that needs to be delivered based on various factors such as engine speed and load.
The most common type of fuel injector is the piezoelectric injector, which uses a small ceramic crystal to create the electrical signal that opens the injector.
When the engine’s computer sends a current through the crystal, it causes the crystal to vibrate, which in turn opens the injector valve and allows fuel to flow.
Fuel injectors are subject to a lot of wear and tear because they are constantly being opened and closed by the engine’s computer.
Over time, the seals and other parts of the injector can break down, which can cause fuel to leak into the engine. This can lead to poor engine performance and increased emissions.
To keep your engine running smoothly, it’s important to have your fuel injectors serviced regularly. You can clean and inspect your injectors and replace any parts that are worn or damaged.
What is the purpose of a fuel injector?
The basic function of a fuel injector is to supply your vehicle’s engine with fuel. The injector sprays “injects” fuel into the cylinder of the engine through a nozzle so that the internal combustion process can begin.
The fuel must be delivered at the right time, amount, pressure, angle and spray pattern. The Engine Control Unit (ECU) makes sure the injector sprays fuel at the right time and in the right amount so the correct air/fuel mixture is created.
The ECU is your vehicle’s central computer or “brain” that manages different parts, including the fuel injector.
It also determines when fuel is needed and pushes gasoline from the tank, through fuel lines, and into the fuel injectors.
Sometimes the fuel injector will get dirty, clogged or completely fail and need to be replaced.
How Do Fuel Injectors Work?
Fuel injectors control the volume of fuel delivered to the combustion chamber, ensuring the right amount is injected at the right time.
Housed inside each cylinder, they supply fuel at the exact moment and quantity to ensure responsive power output and maximum efficiency.
- The fuel pump pushes petrol or diesel through the fuel lines to the injectors.
- The ECU (engine control unit) uses sensors to work out the right time to fire the injectors and spray fuel into the combustion chamber.
- When the ECU activates the injector, pressurized fuel is sprayed into the combustion chamber through the nozzles. Because the nozzles are so small, the fuel is atomized, which makes it burn more efficiently.
What are the symptoms of a leaking fuel injector?
Discovering a leaking fuel injector in your vehicle can manifest in several symptoms, signaling potential issues that require attention:
- Engine misfires, rough idle, and difficulty starting, which can disrupt your driving experience.
- A lit check engine light may appear on your dashboard, indicating a problem with the fuel system.
- Poor engine performance, sluggish acceleration, and the presence of gasoline odors emanating from the engine compartment.
- Spark plug fouling, increased emissions, and black smoke from the exhaust due to carbon deposits.
- Engine stalling due to hydro locking, where excess fuel floods the combustion chamber, preventing proper compression.
- Fuel leakage can result in oil thinning, reducing the engine oil’s ability to lubricate and protect engine components, ultimately leading to engine damage and increased fuel consumption.
What Causes Fuel Injector Leaking?
The fuel injector can be leaked for various reasons. Here we will try to share some of the common causes that are responsible for fuel injector leaking.
#1. Corrosion due to Use.
Fuel injectors are complex mechanical components that experience constant use and exposure to high temperatures and pressures. Over time, internal components including seals, O-rings and valves can deteriorate due to wear and tear.
It can cause fuel leaks. Repeated opening and closing of the injectors can cause the sealing surfaces to become less effective and thus fuel leakage.
#2. Contaminants and Debris.
Fuel flowing through the injectors may contain impurities, such as dirt, debris, and rust particles. These contaminants can accumulate on the internal components of the injector.
It can cause errors and leaks. When contaminants interfere with the proper seating of injector components, fuel can escape through the gaps, causing leaks.
#3. Vibration and Mechanical Stress.
Vehicles experience varying levels of vibration and mechanical stress during operation. This vibration can cause fuel injector components to shift or misalign over time.
A misaligned injector can cause improper seating of seals and O-rings, which allows fuel to escape and cause leaks.
#4. High Pressure and Temperature Fluctuations.
Modern fuel injection systems operate at high pressure to ensure efficient combustion. Constant exposure to high pressure can cause fatigue of injector components.
Temperature fluctuations between engine operation and cooling phases can cause injector components to expand and contract, potentially causing leaks.
#5. Installation Error.
During maintenance or repair, improper installation of injectors can cause leaks. Insufficient torque during installation can prevent proper sealing, allowing fuel to escape.

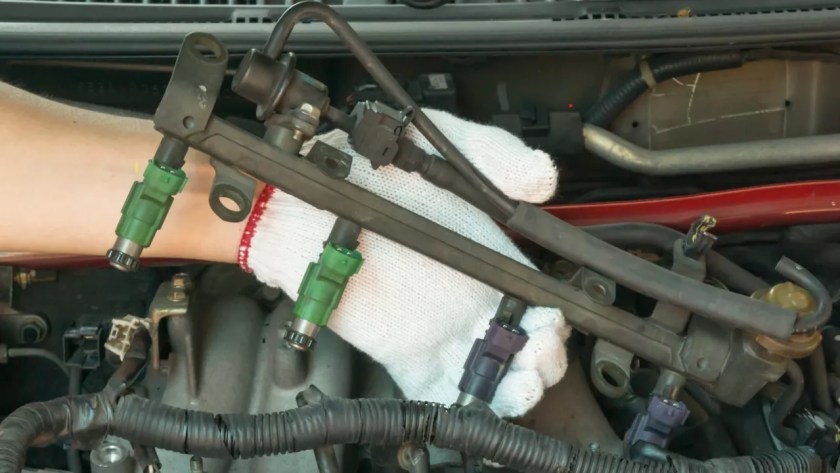

How to Check for Leaking Fuel Injector?
When you have an external leaking fuel injector, the common thing that indicates is ‘gas smell comes within your car’. Here’s an essential guide on the fuel injector leak test.
What will be the outcome of a leaky fuel injector? For instance, your no. three and four fuel injectors are leaking while one and two are okay.
What will happen is that no three and four injectors will spray excess fuel into the cylinder. The computer will send a message to the ECM to reduce the amount of fuel the fuel injectors are spraying.
The ECM will not know exactly the injector that is spraying excess fuel, so the ECM will reduce the fuel that all the injectors are spraying.
Since the ECM has reduced the right amount of fuel that the non-leaking injectors are spraying, it’ll result in inadequate fuel flow from no one and two cylinders.
When this happens, Your computer will store a misfire code in the system. P0301 cylinder 1, p0302 cylinder 2, p0303 cylinder 3, p0304 cylinder 4 codes.
Once the computer adjusts the spraying rate of non-leaking injectors, it will be translated to a misfire.
There could be sorts of variations from this point. However, it is important to know how your injectors work and how they will affect your engine.
step-by-step guides
Step 1: Start your engine, while it’s running on idle, inspect the fuel injectors individually for leaks. If there are any external leaks, your fuel injector O ring is possibly the cause. If this is the case, you’ve to get a new o ring and replace the damaged ones.
Step 2: Turn off your car engine and remove your battery negative terminal. Remove your air filter box from the way (if it’s blocking you) by unscrewing the fasteners holding it.
Step 3: Depending on your car model, disconnect your throttle cable or unplug your throttle socket. Ensure you gently remove all the wires along the way.
Step 4: Disconnect the socket on your injectors. Unbolt the fuel rail and gently pull off the rail with injector remover. To properly do this test, you have to ensure you leave the fuel lines on the fuel rail to deliver adequate fuel pressure from the fuel pump.
Step 5: get something to measure the fuel’s pressure, something like a syringe that has milliliters.
Step 6: Take your multimeter and test the voltage on your injector sockets. On most cars, injectors have two pins. Numbers from 3.70 and 3.89 are okay. You don’t want to see any variations above that.
Step 7: Remove your fuel fuse and take a close look at it; you will see PIN 87 and 30, which are the main fuel lines(these numbers may differ from cars to cars). Contact the fuse to keep the fuel running steady.
Step 8: Send current to your injector and examine the spraying rate of your injectors individually. The reason I asked you to use something like a syringe with milliliters numbering on the body is to determine the level of fuel entering into the container during this process. You can decide to allow the fuel to get to 30-50 milliliters, the higher it is, the more accurate it is likely to be.
Step 9: In this testing model, it is ideal to record the time that all the injectors take to fill the milliliter container. If you can’t get a milliliter container to carry out this test, you can use any other container. However, you’ll have to watch the spraying rate close. The spraying should be running smoothly. You should not see big drops coming out. Once you notice any injector that is spraying excess fuel, it is an indication that the said injector is leaking.
Diagnosing a Leaking Fuel Injector
Diagnosing a leaking fuel injector requires a systematic approach. Follow these steps to identify the faulty injector:
- Visual inspection: Start by inspecting the fuel injector for any visible signs of leakage. Look for fuel stains or wetness around the injector or fuel rail.
- Fuel pressure test: Use a fuel pressure gauge to check the pressure of the fuel system. A significant pressure drop could indicate a leaking fuel injector.
- Fuel injector balance test: This test involves monitoring the injector’s electrical signals to ensure they are all functioning properly. Any irregularities may indicate a leaking injector.
By following these steps, you can pinpoint the specific fuel injector that is causing the leak and proceed with the repair process on how to fix leaking fuel injector.
Tools and Materials Needed
Before diving into the repair process following the guide on how to fix leaking fuel injector, gather the necessary tools and materials. Here’s a list of what you’ll need:
- Safety gear: Always prioritize safety. Make sure to have gloves, safety glasses, and a fire extinguisher nearby.
- Socket set: A socket set will be essential for removing and reinstalling components during the repair process.
- Injector cleaning kit: A specialized cleaning kit will help remove any debris or deposits from the fuel injector.
- Replacement parts: Depending on the condition of the fuel injector, you may need to replace O-rings, seals, or the entire injector.
Gathering these tools and materials beforehand will ensure a smooth and efficient repair process.
How To Fix Leaking Fuel Injector?
#1. Preparing the Vehicle for the Repair Process.
Before starting the repair process by following the guide on how to fix leaking fuel injector, it’s crucial to properly prepare the vehicle. Here’s what you need to do:
- Disconnect the battery: Start by disconnecting the vehicle’s battery to ensure your safety and prevent any electrical mishaps during the repair.
- Relieve fuel pressure: Locate the fuel pump fuse or relay and remove it to relieve the fuel pressure in the system. This step is essential to prevent any fuel spraying or leaks during the repair.
- Depressurize the fuel system: Start the engine and let it run until it stalls. This will empty the fuel lines and remove any remaining pressure in the system.
By following these steps, you will ensure a safe and controlled environment for the repair process on how to fix leaking fuel injector.
#2. Removing the Leaking Fuel Injector.
Now that the vehicle is prepped, it’s time to remove the leaking fuel injector. Follow these steps:
- Locate the fuel rail: The fuel rail is where the fuel injectors are attached. It’s usually located on top of the engine.
- Disconnect electrical connections: Remove any electrical connections attached to the fuel rail or fuel injector. This may include clips or plugs.
- Detach the fuel injector: Carefully disconnect the fuel injector from the fuel rail by removing the retaining clip or bolt.
By following these steps, you will successfully remove the leaking fuel injector from your vehicle.
#3. Cleaning the Fuel Injector and Its Components.
Once the leaking fuel injector is removed, it’s essential to clean it and its components thoroughly. Here’s how to do it:
- Inspect for debris: Examine the fuel injector for any visible debris or deposits. Use a magnifying glass if necessary.
- Use a cleaning solution: Dip the fuel injector in a specialized cleaning solution or use an injector cleaning kit to remove any clogs or deposits.
- Inspect O-rings and seals: Check the O-rings and seals for any signs of wear or damage. Replace them if necessary to prevent future leaks.
By following these cleaning steps, you will restore the fuel injector to its optimal condition.
#4. Replacing Damaged or Worn-Out Parts.
During the cleaning process, you may discover damaged or worn-out parts that need replacement. Here’s what you should do:
- Inspect the fuel injector: Examine the fuel injector carefully for any signs of damage or wear. Pay particular attention to the nozzle and electrical connections.
- Replace damaged parts: If you notice any damaged or worn-out parts, such as a cracked nozzle or faulty electrical connection, replace them with new ones.
- Replace O-rings and seals: If the O-rings or seals are worn or damaged, replace them with new ones to ensure a proper seal and prevent future leaks.
By replacing any damaged or worn-out parts, you will ensure the longevity and effectiveness of the repaired fuel injector.
#5. Reinstalling the Repaired Fuel Injector.
With the fuel injector cleaned and any necessary parts replaced, it’s time to reinstall it. Follow these steps:
- Attach the fuel injector to the fuel rail: Carefully place the repaired fuel injector back into the fuel rail and secure it with the retaining clip or bolt.
- Reinstall the fuel rail: Place the fuel rail back onto the engine, aligning it with the mounting bolts or clips. Tighten them securely.
- Reconnect electrical connections: Attach any electrical connections that were previously disconnected, ensuring a secure and tight connection.
By following these steps, you will successfully reinstall the repaired fuel injector.
#6. Testing the Fuel Injector and Checking for Leaks.
After reinstalling the fuel injector, it’s crucial to test it and check for any potential leaks. Here’s what you should do:
- Reconnect the battery: Reconnect the vehicle’s battery to restore power to the fuel injector and electrical components.
- Turn on the ignition: Turn the ignition key to the “on” position without starting the engine. This will pressurize the fuel system.
- Check for leaks: Inspect the fuel injector and the surrounding area for any signs of leaks. Look for fuel stains or wetness.
- Perform a fuel pressure test: Use a fuel pressure gauge to test the pressure of the fuel system. Compare the readings to the specifications outlined in your vehicle’s manual.
By performing these tests, you can ensure that the repaired fuel injector is functioning properly and there are no leaks present.
How to Prevent Fuel Injector Failure?
Dirty or bad fuel injectors aren’t a problem anyone wants to deal with. Here are some proactive steps you can take to help protect your injectors and keep your vehicle’s engine running smoothly:
- Drive Your Car Regularly: Long periods of sitting (especially with old fuel) can cause buildup in the injectors. Try to drive your car at least every week or two.
- Avoid Letting Your Tank Run Low: Running on fumes can stir up sediment at the bottom of your fuel tank, which can clog injectors.
- Change Your Fuel Filter as Recommended: Your fuel filter protects the injectors from dirt and debris. Following your manufacturer’s recommended maintenance schedule helps prevent clogs and contamination.
- Use High-Quality Fuel: Stick to reputable gas stations (like a TOP TIER™ Authorized Supplier). Poor-quality or contaminated fuel can leave harmful deposits behind.
- Schedule Fuel System Cleaning: Professional cleaning services help remove buildup, improve fuel flow, and keep injectors performing like they should.
Regular tune-up services can help keep your entire fuel system, including the injectors, in top shape and prevent performance problems down the road.
FAQs.
Q: Can I drive with a leaking injector?
If your car is having internal leaks, you can drive it for a few miles. This doesn’t mean that your car will not move, it’ll take you around.
But it will deeply affect the efficiency of your engine. If you experience external leaks, cautiously find a safe place and park your car. If you continue driving your car with external fuel injector leaks, it’ll cause a fire outbreak in no time.
Q: Can you fix a leaking fuel injector?
Yes, you can easily fix a leaking fuel injector. If your injector has an internal leak, your best bet is to get a new injector and replace it.
If it happens to be external leaks, or you have a fuel injector leaking air, it is most likely caused by weak or broken o rings. If a thorough diagnosis proves the cause to be o ring, you can easily replace the o ring and get your car running again.
Q: When should I replace my fuel injector O ring?
Without minding how small your fuel injector O rings are, they play a vital role in your car engine performance.
When your fuel injector O rings go bad, it will not only affect your engine performance, it will also cause fuel odor around your car, which might cause a fire outbreak if not noticed and fixed on time.
Once you see any of these noticeable symptoms, It is an indication that your fuel injector O rings need to be replaced:
- Fuel odor within your car
- Wet fuel injector areas
- Impact on the fuel injector O rings.
Q: How do you do a fuel injector leak-down test?
Carrying a fuel injector leak-down test is quite a simple task. This method is suitable for car engines that have port Schrader valves. The easiest way to carry out this process is by installing a performance fuel system EFI gauge kit.
Install the EFI gauge kit, start your car engine and allow it to idle. Check for fuel leaking injector for 20 – 45 minutes. Ensure you observe the fuel pressure closely. The pressure should be between 35-50 psi.
Turn off the engine and watch the drop in fuel pressure. A 2psi per second is a swift drop down and indicates a fault. A much slower speed is very okay.
Final words
As you have seen, leaking fuel injectors can cause fire hazards and severe engine problems. Ensure you fix fuel leaks immediately after you notice them to prevent damage to your car engine.
We have successfully walked you through how to check for the leaking fuel injector and ways to get them fixed. Feel free to drop any questions and/or comments in the comment box.
